CentOS 7 Docker Sentry 설치 및 설정

2022-03-06 Server

Sentry 설치

# yum install git -y
# sudo yum install -y yum-utils
# sudo yum-config-manager \
    --add-repo \
    https://download.docker.com/linux/centos/docker-ce.repo

# sudo yum install docker-ce docker-ce-cli containerd.io

# yum install -y yum-utils device-mapper-persistent-data lvm2

# systemctl start docker && systemctl enable docker

# sudo curl -L "https://github.com/docker/compose/releases/download/1.29.0/docker-compose-$(uname -s)-$(uname -m)" -o /usr/local/bin/docker-compose

# sudo chmod +x /usr/local/bin/docker-compose

# docker-compose --version

# cd /usr

# git clone https://github.com/getsentry/onpremise.git docker-sentry

# cd /usr/docker-sentry

# ./install.sh
...
Would you like to create a user accout now ? [Y/n] : y
Email: 이메일
password: 비밀번호

Should this user have Super Admin role? (This grants them all permissions available) [y/N]: y
User created:
Creating missing DSNs
Correcting Group.num_comments counter

...

-----------------------------------------------------------------

You're all done! Run the following command to get Sentry running:

  docker-compose up -d

# docker-compose run --rm web upgrade
Starting sentry-self-hosted_clickhouse_1   ... done
Starting sentry-self-hosted_redis_1        ... done
Starting sentry-self-hosted_zookeeper_1    ... done
...

# vim /usr/docker-sentry/sentry/sentry.conf.py
DATABASES = {
    "default": {
        "ENGINE": "sentry.db.postgres",
        "NAME": "postgres",
        "USER": "postgres",
        "PASSWORD": "비밀번호",
        "HOST": "postgres",
        "PORT": "",
    }
}

30일보다 오래된 이벤트를 제거(기본값 90일)
# vim /usr/docker-sentry/.env
SENTRY_EVENT_RETENTION_DAYS=30

# docker-compose up -d
sentry-self-hosted_memcached_1 is up-to-date
sentry-self-hosted_redis_1 is up-to-date
...
Creating sentry-self-hosted_geoipupdate_1                        ... done
Creating sentry-self-hosted_symbolicator-cleanup_1               ... done
Creating sentry-self-hosted_snuba-transactions-cleanup_1         ... done
Creating sentry-self-hosted_snuba-cleanup_1                      ... done
Creating sentry-self-hosted_worker_1                             ... done
Creating sentry-self-hosted_cron_1                               ... done
Creating sentry-self-hosted_subscription-consumer-events_1       ... done
Creating sentry-self-hosted_subscription-consumer-transactions_1 ... done
Creating sentry-self-hosted_post-process-forwarder_1             ... done
Creating sentry-self-hosted_ingest-consumer_1                    ... done
Creating sentry-self-hosted_web_1                                ... done
Creating sentry-self-hosted_sentry-cleanup_1                     ... done
Creating sentry-self-hosted_relay_1                              ... done
Creating sentry-self-hosted_nginx_1                              ... done

방화벽 설정

# sudo firewall-cmd --permanent --add-rich-rule='rule family="ipv4" source address=xxx.xxx.xxx.0/24 port port="9000" protocol="tcp" accept'

# firewall-cmd --permanent --add-service=https

# firewall-cmd --reload
# firewall-cmd --list-all

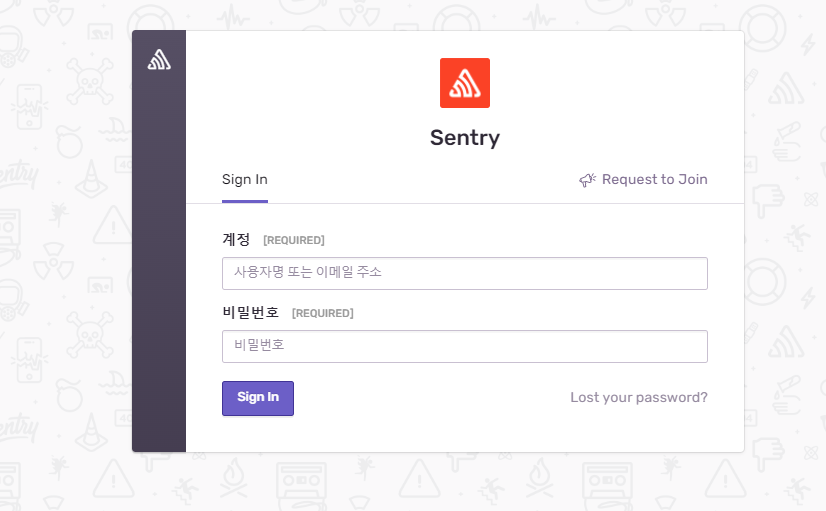

브라우저에서 접속 해보기

http://sentry-server-ip:9000

Nginx 연동

참고 sentry-domain은 sentry 용으로 발급 받은 도메인입니다.

# vim /etc/yum.repos.d/nginx.repo
[nginx]
name=nginx repo
baseurl=http://nginx.org/packages/centos/7/$basearch/
gpgcheck=0
enabled=1

설치

# yum install -y nginx

설정

# vim /etc/nginx/nginx.conf
user root;
worker_processes auto;

error_log /var/log/nginx/error.log warn;
pid /var/run/nginx.pid;


events {
	worker_connections 1024;
}

http {
  include       /etc/nginx/mime.types;
	default_type application/octet-stream;

	log_format main '$remote_addr - $remote_user [$time_local] "$request" '
	'$status $body_bytes_sent "$http_referer" '
	'"$http_user_agent" "$http_x_forwarded_for"';

	access_log /var/log/nginx/access.log main;

	sendfile on;
	tcp_nopush on;
	tcp_nodelay on;
	reset_timedout_connection on;

	keepalive_timeout 75s;

	gzip off;
	server_tokens off;

	server_names_hash_bucket_size 64;
	types_hash_max_size 2048;
	types_hash_bucket_size 64;
	client_max_body_size 100m;

	proxy_http_version 1.1;
	proxy_redirect off;
	proxy_buffering off;
	proxy_next_upstream error timeout invalid_header http_502 http_503 non_idempotent;
	proxy_next_upstream_tries 2;

	proxy_set_header Connection '';
	proxy_set_header Host $host;
	proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
	proxy_set_header X-Forwarded-Proto $scheme;
	proxy_set_header X-Request-Id $request_id;
	proxy_read_timeout 30s;
	proxy_send_timeout 5s;


    server {
         listen       80;
         server_name  sentry-domain;
		 access_log  off;
         return 301 https://$host$request_uri;
    }

	server {
		 listen       443 ssl http2;
         listen       [::]:443 ssl http2;
         server_name  sentry-domain;

         ssl_certificate      /etc/nginx/ssl/my.crt.pem;
         ssl_certificate_key  /etc/nginx/ssl/my.key.pem;

         ssl_session_cache    shared:SSL:1m;
         ssl_session_timeout  30m;

         ssl_protocols TLSv1 TLSv1.1 TLSv1.2 TLSv1.3;
         ssl_ciphers ECDH+AESGCM:DH+AESGCM:ECDH+AES256:DH+AES256:ECDH+AES128:DH+AES:ECDH+3DES:DH+3DES:RSA+AESGCM:RSA+AES:RSA+3DES:!aNULL:!MD5:!DSS;
         ssl_prefer_server_ciphers  on;

		 location / {
			 proxy_pass http://localhost:9000;
		 }
	}
}

서비스 등록 및 실행

# systemctl enable nginx

# vim /usr/lib/systemd/system/nginx.service
[Unit]
Description=nginx - high performance web server
Documentation=http://nginx.org/en/docs/
After=network-online.target remote-fs.target nss-lookup.target
Wants=network-online.target

[Service]
User=root
Type=forking
PIDFile=/var/run/nginx.pid
ExecStart=/usr/sbin/nginx -c /etc/nginx/nginx.conf
ExecReload=/bin/sh -c "/bin/kill -s HUP $(/bin/cat /var/run/nginx.pid)"
ExecStop=/bin/sh -c "/bin/kill -s TERM $(/bin/cat /var/run/nginx.pid)"

[Install]
WantedBy=multi-user.target

# systemctl daemon-reload
# systemctl start nginx

sentry ssl 설정

# vim /usr/docker-sentry/sentry/config.yml
맨 아래 추가
system.url-prefix: 'https://sentry-domain'

# vim /usr/docker-sentry/sentry/sentry.conf.py
이 부분 주석 해제
SECURE_PROXY_SSL_HEADER = ('HTTP_X_FORWARDED_PROTO', 'https')
SESSION_COOKIE_SECURE = True
CSRF_COOKIE_SECURE = True
SOCIAL_AUTH_REDIRECT_IS_HTTPS = True

서비스 재시작

# cd /usr/docker-sentry
# docker-compose stop
# docker-compose up -d

로그 확인

# journalctl -f
# docker-compose logs -f
# docker-compose logs -f sentry

브라우저에서 https 접속

https://sentry-domain

Slack 연동

공식 홈페이지 문서: https://develop.sentry.dev/integrations/slack/?referrer=issue-alert-builder

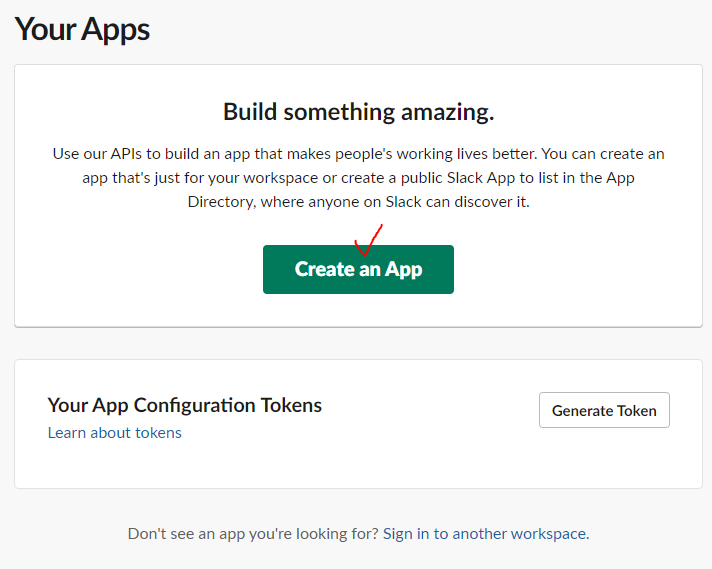

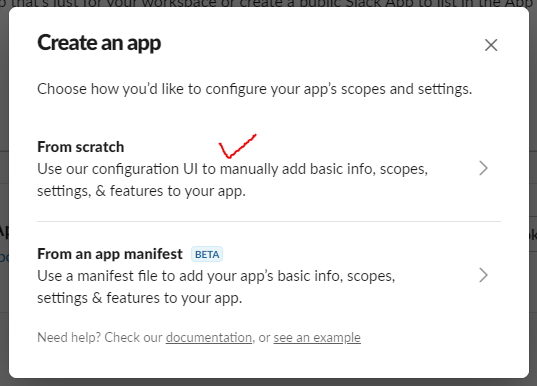

https://api.slack.com/apps에 접속하여 Slack App을 만듭니다.

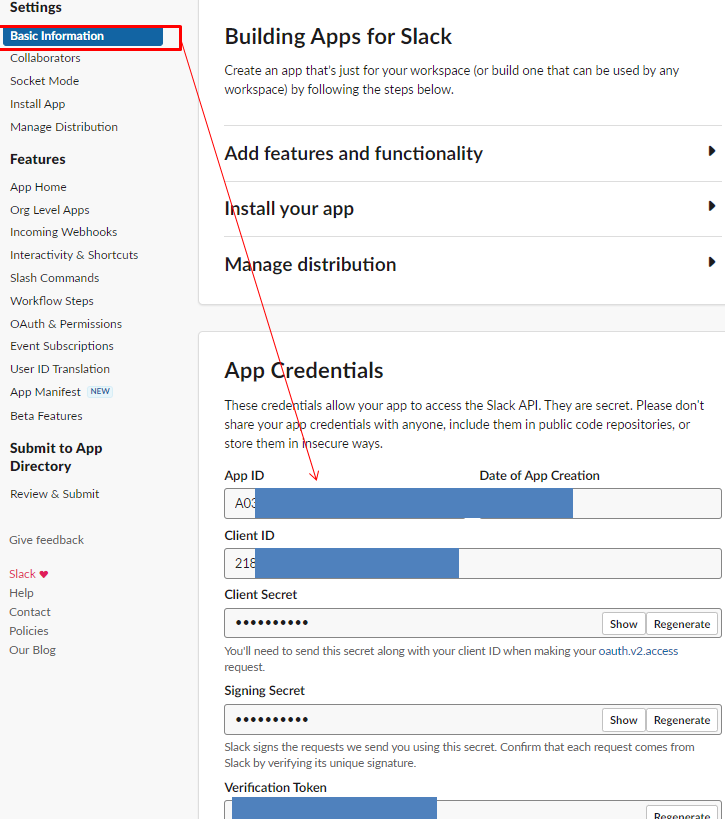

sentry에 slack 정보를 저장합니다.

# vim /usr/docker-sentry/sentry/config.yml
맨 아래 보면 다음과 같은 항목들이 주석되어 있는데 해제하고 위 그림의 정보를 넣습니다.

slack.client-id: '2180...'
slack.client-secret: '3e31...'
slack.signing-secret: 'f3e12...'
## If legacy-app is True use verfication-token instead of signing-secret
slack.verification-token: 'ZTya...'

system.url-prefix: 'https://sentry-domain'

서비스 재시작

# cd /usr/docker-sentry
# docker-compose stop
# docker-compose up -d

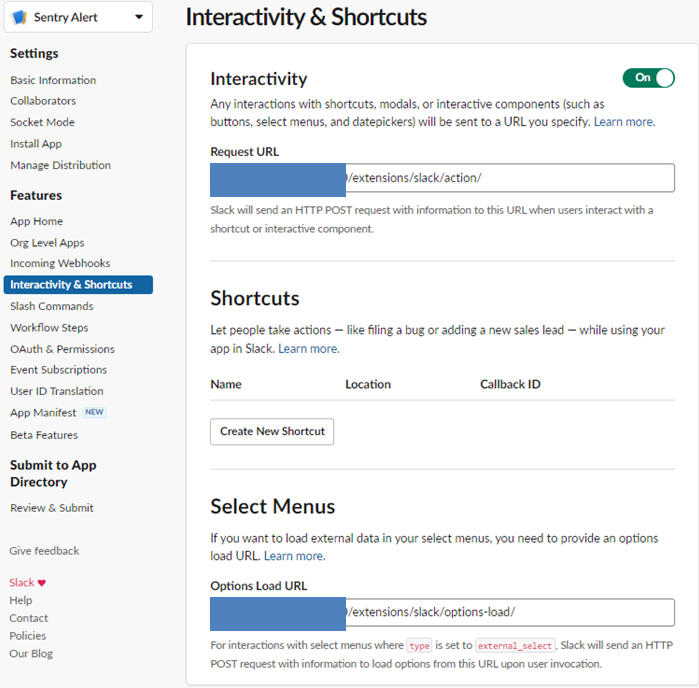

좌측 메뉴에서 Interactivity & Shortcuts를 클릭하고 화면에서 아래와같이 입력합니다.

Request URL: https://sentry-domain/extensions/slack/action/
Options Load URL: https://sentry-domain/extensions/slack/options-load/

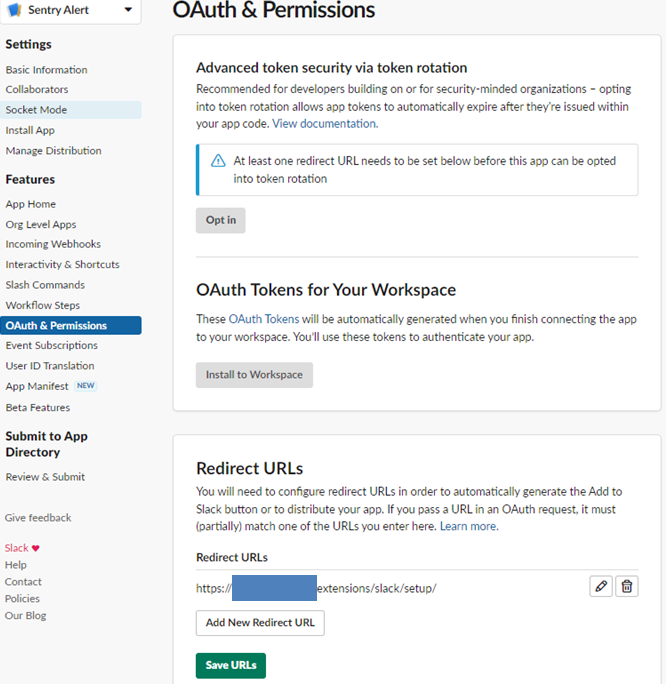

좌측 메뉴에서 OAuth & Prermissions를 클릭하고 화면에서 아래와같이 입력합니다.

https://sentry-domain/extensions/slack/setup/

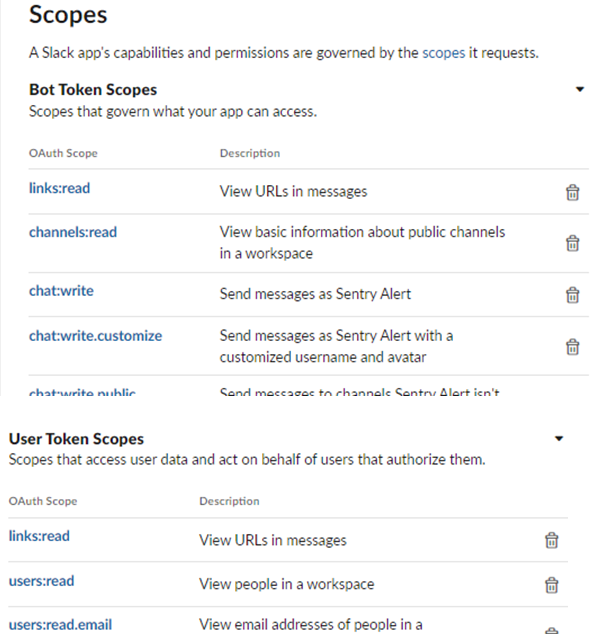

위 화면에서 아래로 스크롤 하면 Scopes 항목을 아래와 같이 입력합니다.

Bot Token Scopes

channels:read
chat:write
chat:write.customize
chat:write.public
commands
groups:read
im:history
im:read
links:read
links:write
team:read
users:read

User Token Scopes

links:read
users:read
users:read.email

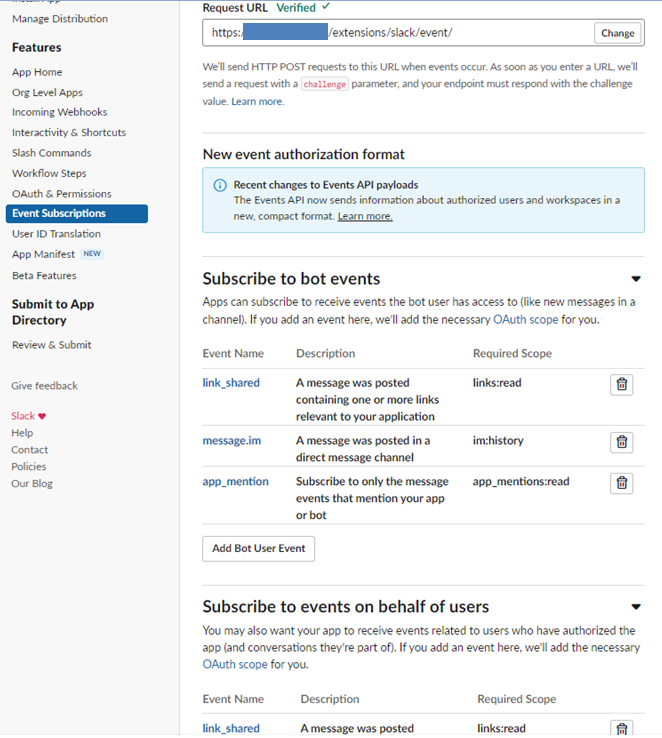

좌측 메뉴에서 Event Subscriptions를 클릭하고 아래와 같이 입력합니다.

Request URL

https://sentry-domain/extensions/slack/event/

Subscribe to bot events에 다음 추가

link_shared
message.im

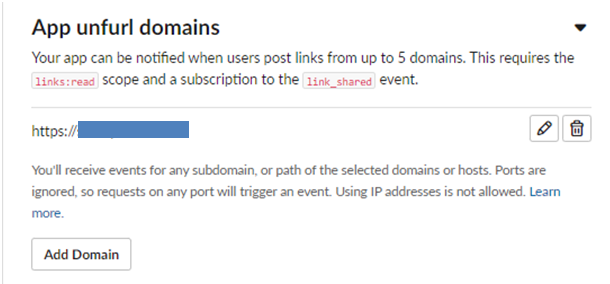

Subscribe to … users에 다음 추가

link_shared

https://sentry-domain

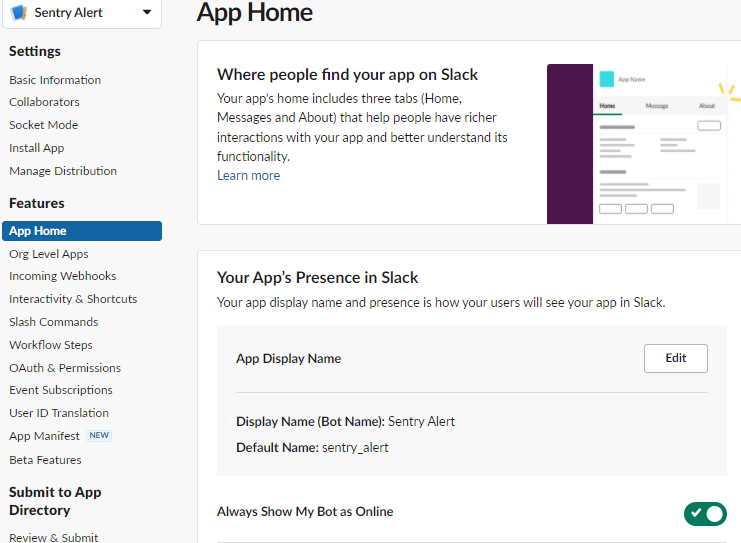

좌측 메뉴 App Home에서 App Display Name을 등록 및 변경할 수 있습니다.

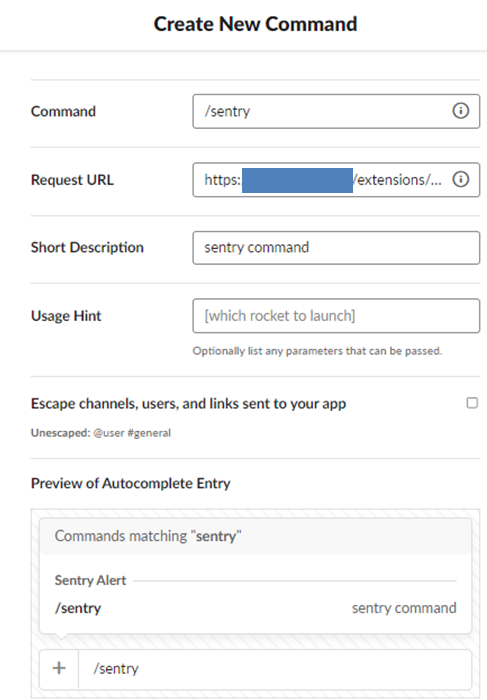

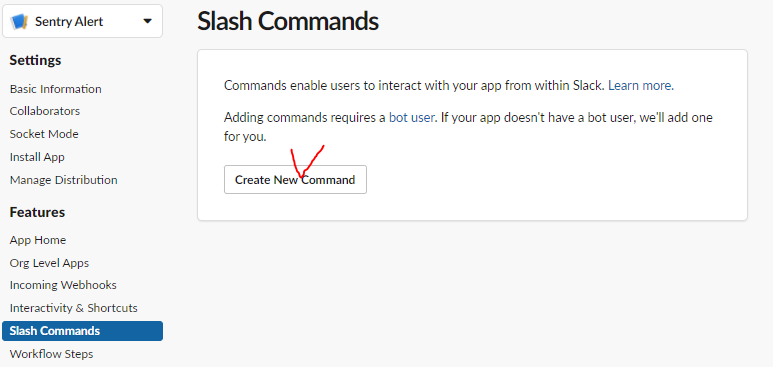

Request URL에 아래와 같이 입력

https://sentry-domain/extensions/slack/commands/

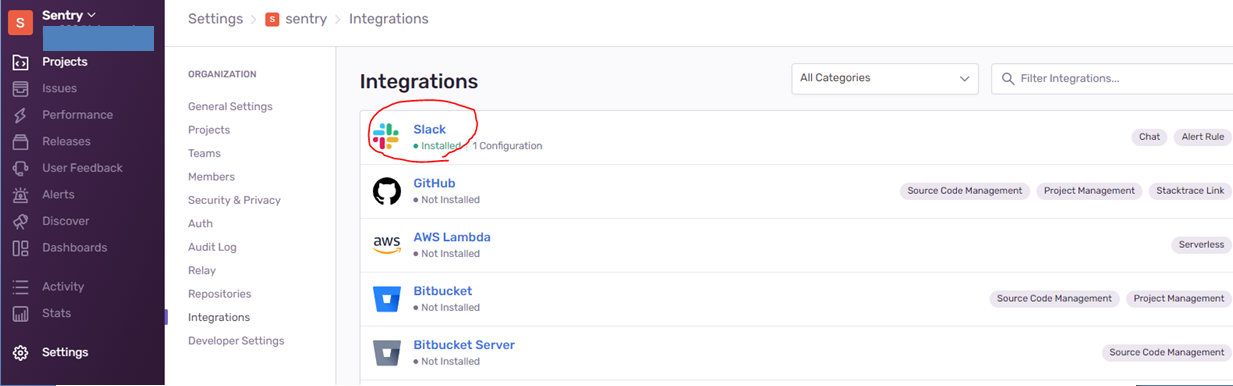

브라우저에서 https://sentry-domain 로 접속하고 Settings - Integrations에서 Slack을 Install합니다.

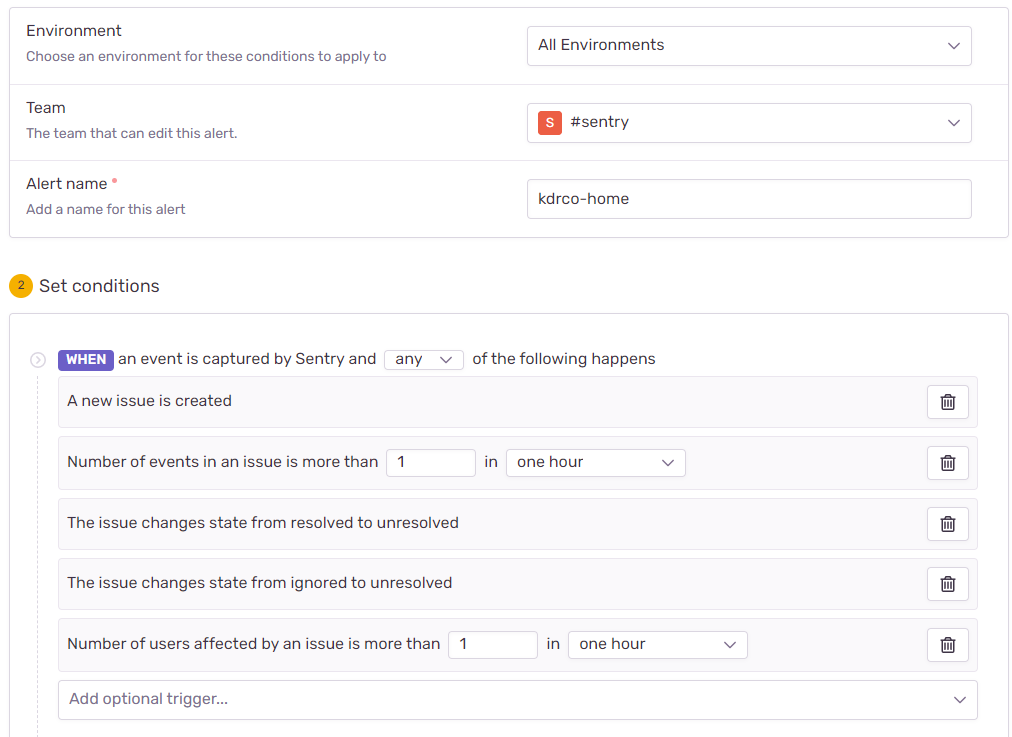

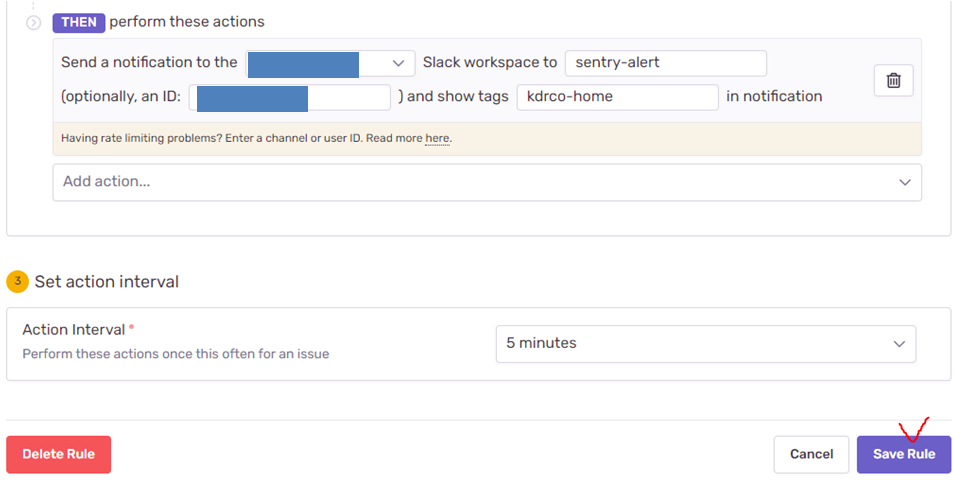

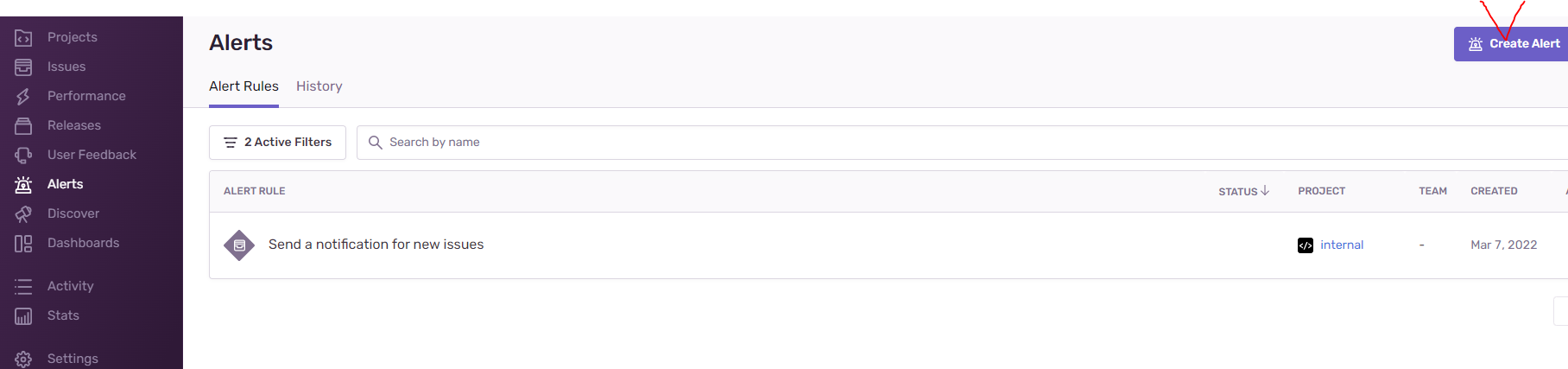

Alert을 생성합니다.

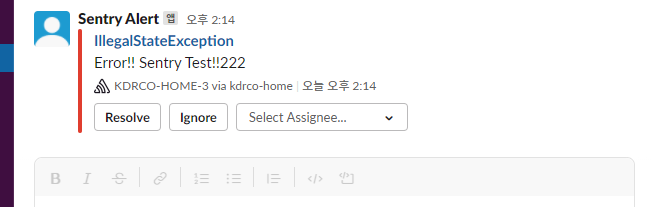

Spring Application에서 테스트로 Error를 발생 시켜 Sentry로 보내면 Slack으로 메시지가 옵니다.

Sentry Uninstall

# docker-compose down
# docker volume ls
DRIVER    VOLUME NAME
local     4abe3bad6ab388237998f4f9ac85d973f58941350421448d0bd8737fe7a48cb7
local     dfa7b09bae09d1159bbeb925247474352f018990a00bef5c7fd50b72bf50e06a
local     ffa945e73706ade1e189a68bb10fd234ecd50726b8c090afb79ac6ee9be672ee
local     sentry-clickhouse
local     sentry-data
local     sentry-kafka
local     sentry-postgres
local     sentry-redis
local     sentry-self-hosted_sentry-clickhouse-log
local     sentry-self-hosted_sentry-kafka-log
local     sentry-self-hosted_sentry-secrets
local     sentry-self-hosted_sentry-smtp
local     sentry-self-hosted_sentry-smtp-log
local     sentry-self-hosted_sentry-zookeeper-log
local     sentry-symbolicator
local     sentry-zookeeper

도커 관련 volume 모두 정리
# docker volume prune
또는 아래와 같이 sentry 관련된 volume을 하나씩 삭제
# docker volume rm sentry-clickhouse sentry-data

#rm -rf sentry 설치디렉토리

# docker images
REPOSITORY                               TAG             IMAGE ID       CREATED         SIZE
getsentry/sentry                         nightly         c257cbe96b1e   9 hours ago     1.05GB
getsentry/relay                          nightly         eb6b028e8dcd   11 hours ago    216MB
<none>                                   <none>          929e525b03a6   23 hours ago    1.05GB
...
리스트에서 아래와 같이 하나씩 삭제
# docker rmi -f 이미지ID
또는 이미지 전체 삭제
# docker rmi $(docker images -q)

# systemctl stop docker
